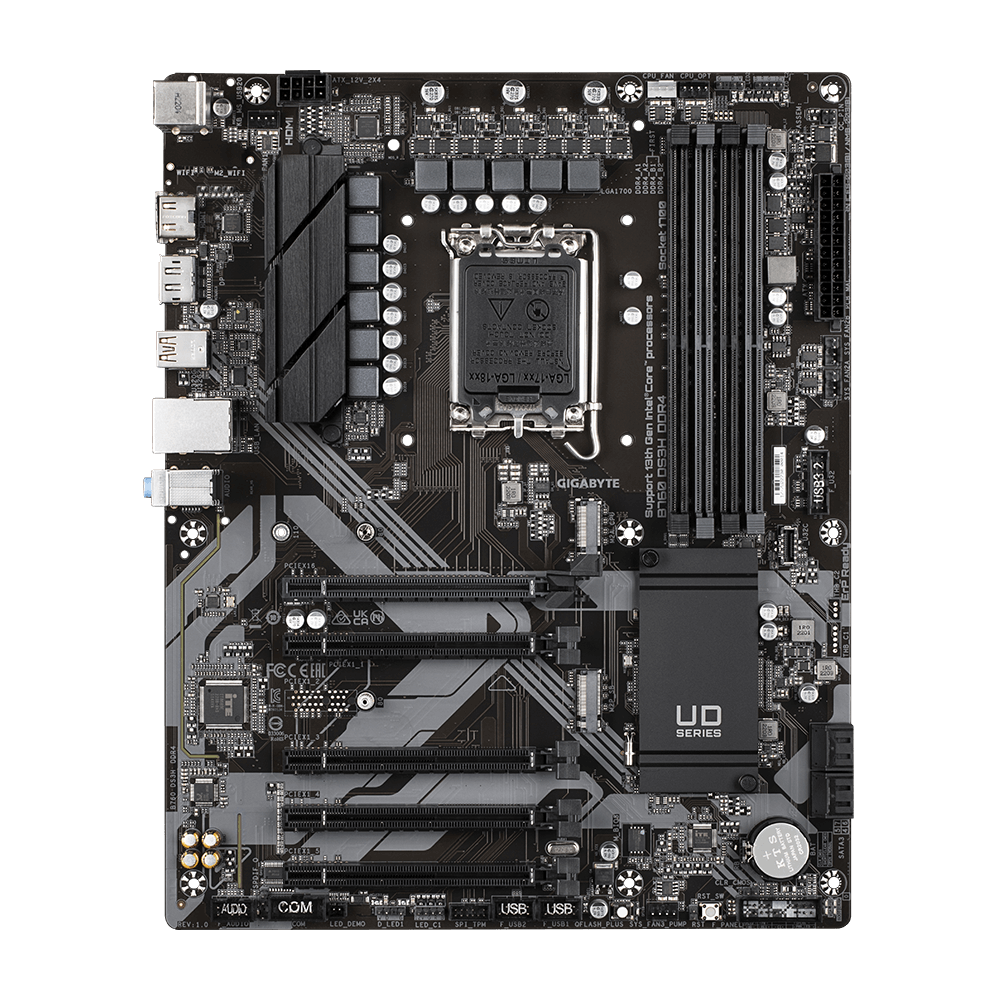

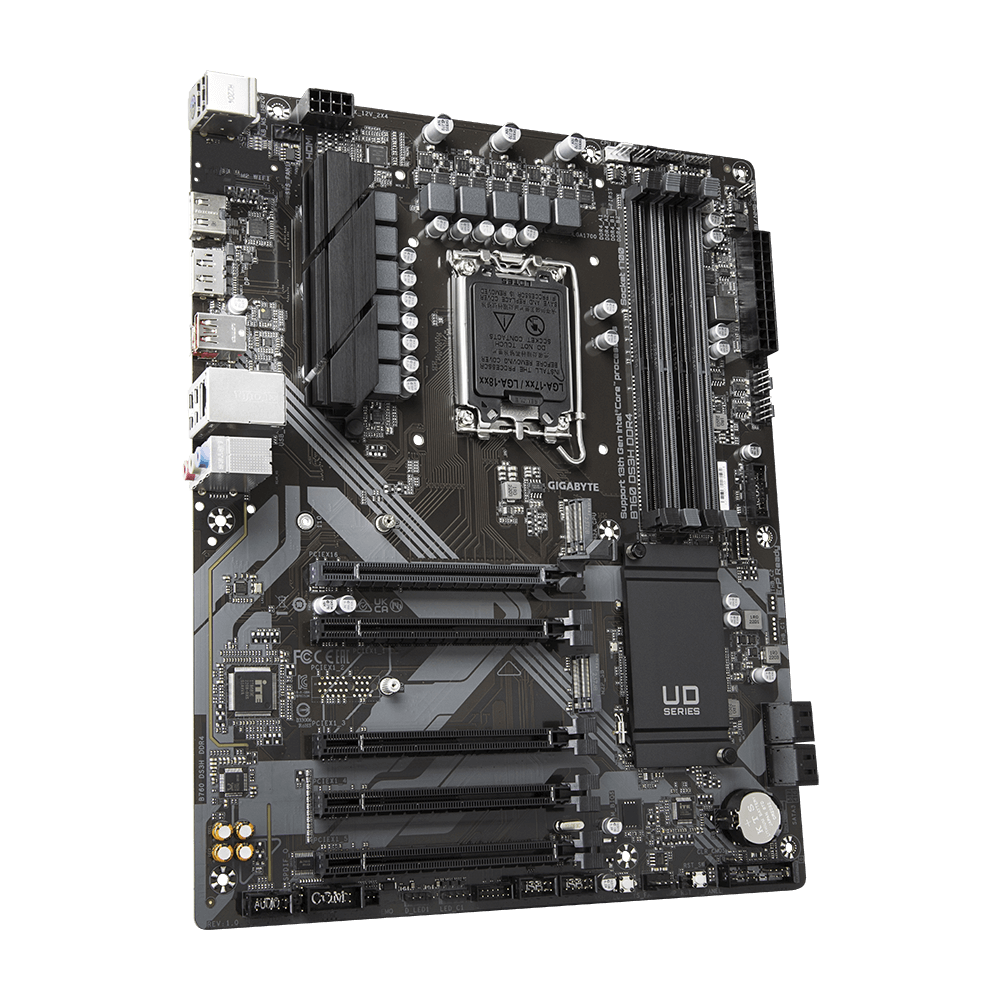

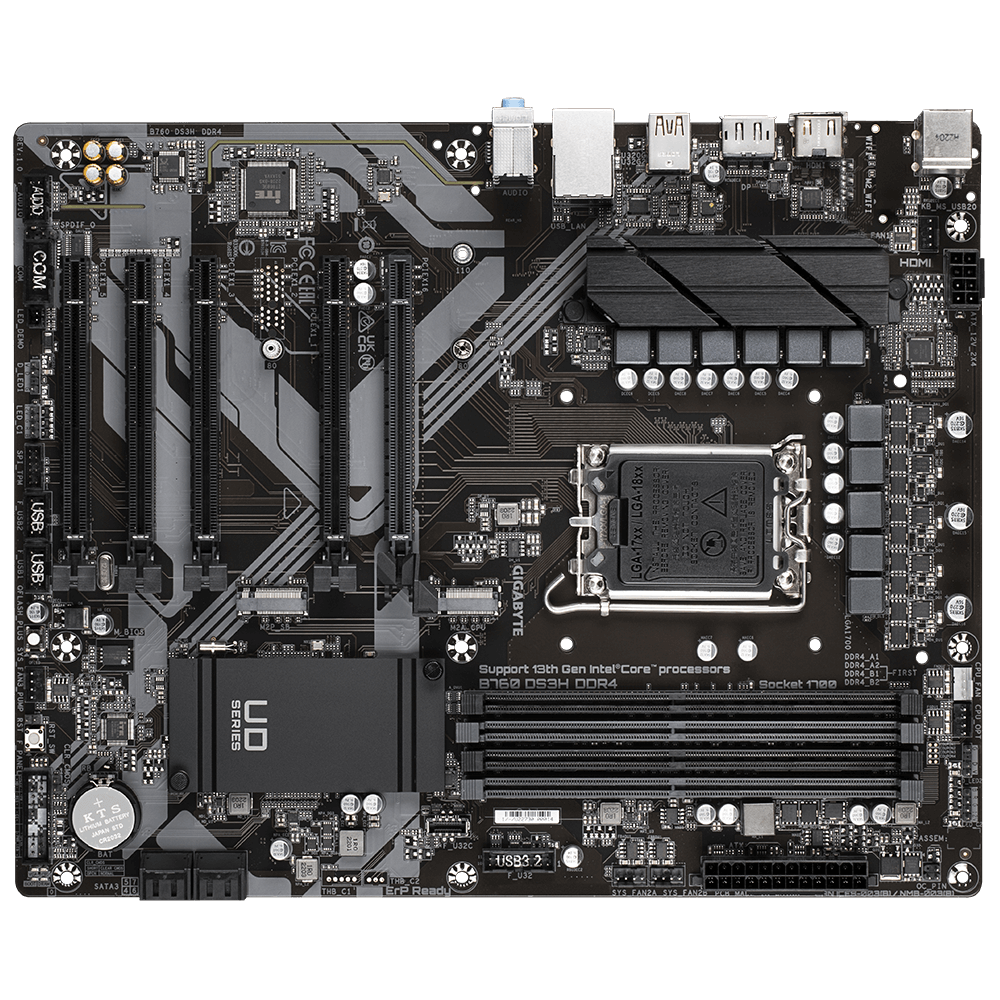

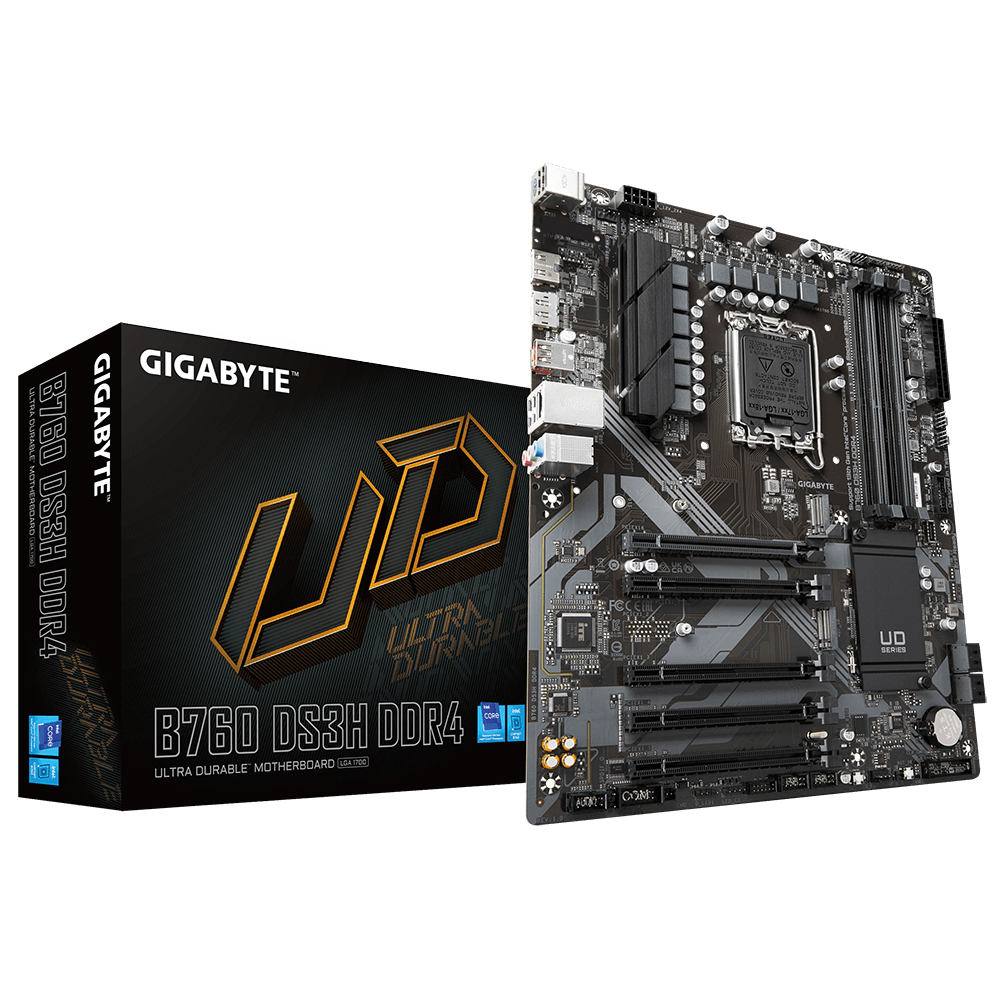

Placa de baza GIGABYTE B760 DS3H LGA1700

Availability:

20 în stoc
Add to wishlist
Compare

970,10 lei

20 în stoc

Credit module TBI Bank RO 1.1.1
253.05 Lei x 4 rate

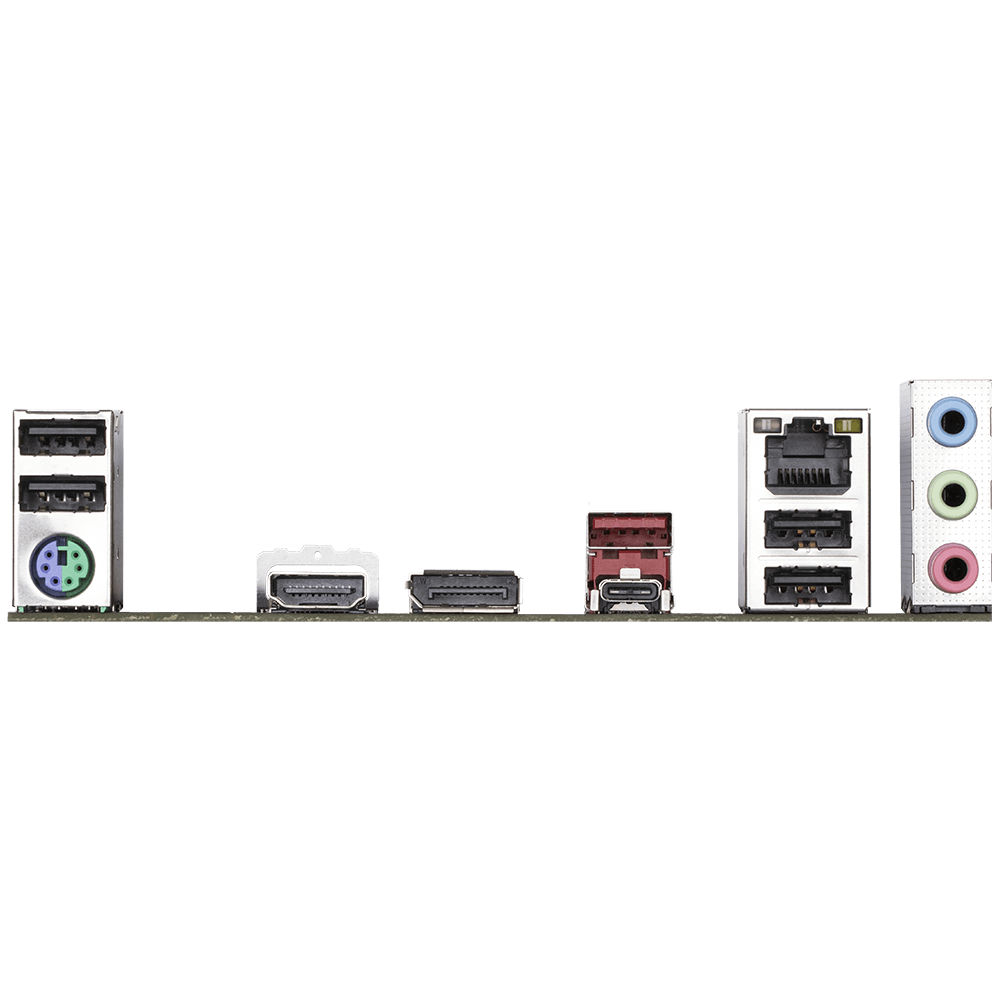

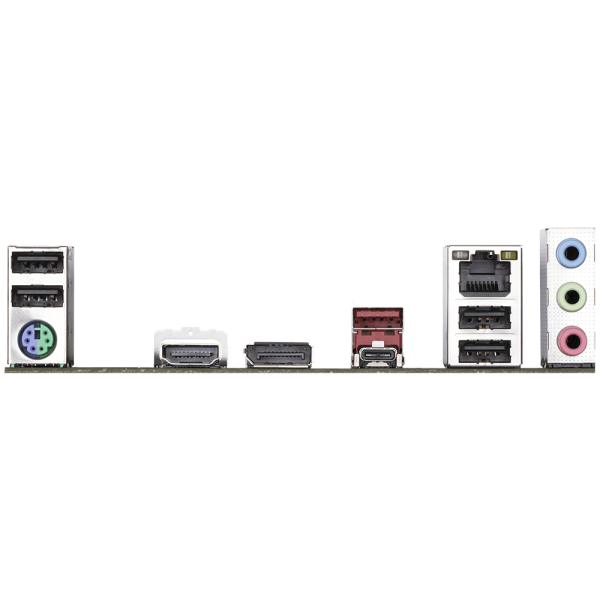

Placa de baza GIGABYTE B760 DS3H LGA1700, 4x DDR5 7600MHz, 1x HDMI, 1x DisplayPort, 5x PCIe x16, 2x M.2, 4x SATA 6Gbps, LAN 1Gbps, ATX

Report Abuse
SKU: B760 DS3H Categorie:
PCI

0
Serial-or-Paralel

No/No
Video-Connection

DP
Wi-Fi

No
Onboard-CPU

No
Country of origin

China
RAID support

Yes
Component for

PC
USB connector type

USB Type-A, USB Type-C
Ethernet interface type

Gigabit Ethernet
Memory channels

Dual-channel
Processor manufacturer

Intel
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.0
Microphone in

Yes
Width

305 mm
Depth

244 mm
USB 3.2 Gen 2x2 Type-C ports quantity

1
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0
USB 2.0 ports quantity

4
Audio output channels

7.1 channels
Supported storage drive types

HDD & SSD
Number of M.2 (M) slots

2
Maximum internal memory

192 GB
HDCP

Yes
DisplayPort version

1.2
DisplayPorts quantity

1
VGA (D-Sub) ports quantity

0
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Model Chipset

B760
Gaming

Nu
Format

ATX
Soclu Procesor

Socket 1700
Tip Memorie

DDR5
Numar sloturi memorie

4
Memorie maxima

192 GB
Tip slot interfata grafica

PCIe 4.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
Bluetooth

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

2
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
BIOS type

UEFI AMI
Clear CMOS jumper

Yes
Supported memory types

DDR5-SDRAM
ECC сompatibility

ECC & Non-ECC
Number of HDDs supported

4
RAID levels

0, 1, 5, 10
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
Motherboard form factor

ATX
Motherboard chipset family

Intel
PC health monitoring

Fan, Temperature, Voltage, Water cooling
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Package width

335 mm
Package depth

270 mm
Package height

80 mm
Height

35 mm
Processor socket

LGA 1700
Supported processor sockets

LGA 1700
Maximum internal memory supported by processor

192 GB
MAXIMUM-RESOLUTION

4096 x 2304 pixels
Total number of SATA connectors

4
Cables included

SATA
Number of storage drives supported

6
BIOS memory size

128 Mbit
Supported memory clock speeds

7600 MHz
Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
Headphone outputs

3
Motherboard chipset

Intel B760 Express
PCI Express x16 slots

5
Bundled software

Norton Internet Security
Package weight

1.27 kg
Product colour

Blond
Producator

GIGABYTE
Garantie

36
